Un claro ejemplo de que los grandes mapping no tienen porque ser en mega fachadas.
For the general contractor allreal
PROJEKTIL realized in cooperation with the OOS architects the showroom

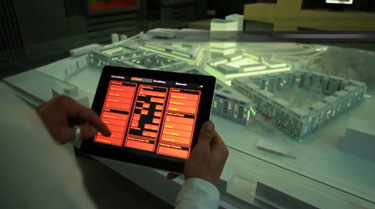

for the Richti-Areal. The focus is on an «augmented reality
installation», a by 5 projectors recorded architectural model in scale
1:200. On the model can be shown various simulations (nightlife, sun and
shadow, etc.), and also information (use zones, green areas, transport
etc.) . Not only this installation is controlled interactivly by an
ipad, but the whole space, which includes 44 dimmable dali lamps, 6 DMX
lamps, 9 beamers, a touchscreen and the audio system.
1 architecture model scale 1:200
1 ipad
9 full HD beamers
6 macminis
5000 vertices to set
40+ different animations and stills
44 dimmable dali lamps
6 DMX lamps
1 touchscreen
room ambiance and modell interaction via iPad
all communications based on OpenSoundControl protocol
MeshWarpServer for realtime-meshwarping
MaxMSP/Jitter for interaction control and video player
python script for device control via rs232
all modeling, animation and rendering with Blender
some sources available under MeshWarpServer.org
